SIMULATING SPACE ON EARTH FOR YOUR MISSION SUCCESS
Dynavac is a global leader in space simulation and Thermal Vacuum Systems.With over 300+ systems deployed worldwide, we support the development and testing of mission‑critical space hardware — from LEO to deep space. With engineering, manufacturing, sales and service in Europe, we deliver reliable, mission‑ready solutions with local expertise and global experience.

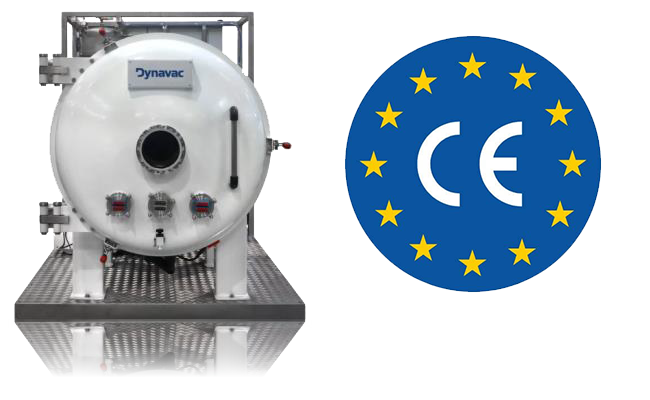

Dynavac supports European space programs with locally engineered Thermal Vacuum Systems. Designed and manufactured in France, with dedicated support across Europe.
Simulating space on earth for your mission success
Turnkey thermal vacuum systems (TVAC)
For over forty years, Dynavac has been a trusted partner of aerospace companies worldwide, providing a comprehensive range of Thermal Vacuum Chambers (TVAC) and systems. Our Thermal Vacuum Chambers come in various sizes and environments, ensuring that your mission can take flight with full confidence, backed by our unrivaled support.

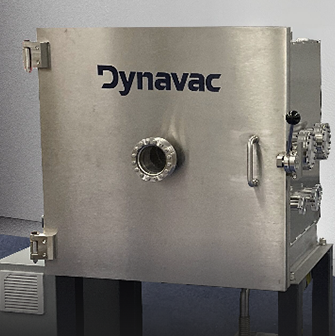

Affordable turnkey TVAC for smallsat, component, and subsystem testing.
Data sheet
Interior Dimensions:
609 x 609 x 609 mm
or 914 x 914 x 914 mm
Temperature Control:
From -180°C to +150°C with liquid nitrogen
From -70°C to +150°C with standard mechanical chiller
Pumping System:
Base Pressure: 1.3 x 10-6 mbar w/ dry mechanical pump, turbomolecular pump, chamber repressurization system
Temperature Change Rate:
> 1.5 K/min

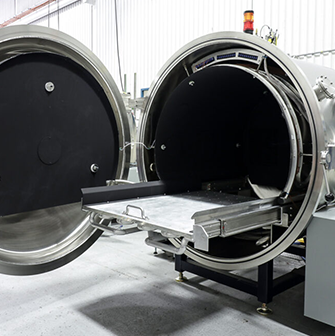

Flexible standard platforms for testing micro and mini class satellites.
Data sheet
Interior Dimensions:
Cylindrical chambers from 0.9 to 2.4 m in diameter, with standard lengths covering most test articles.
Temperature Control:
From -180°C to +150°C with liquid nitrogen or gaseous nitrogen cooling
From -70°C to +150°C with standard mechanical chiller
Pumping System:
Base Pressure: 1.3 x 10-6 mbar
Temperature Change Rate:
> 1.5 K/min

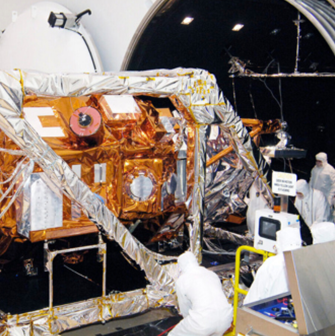

Configurable TVAC accommodating mini and medium class satellites.
Data sheet
Interior Dimensions:
Cylindrical chambers from 2.4 to 4.9 m in diameter, with standard lengths covering most test articles.
Temperature Control:
From -180°C to +150°C with liquid nitrogen or gaseous nitrogen cooling
From -70°C to +150°C with standard mechanical chiller
Below 70°C for critical deep space missions with gaseous helium
Gaseous Helium temperature to below 20K for critical deep space mission.
Pumping System:
Base Pressure: 1.3 x 10-6 mbar
Temperature Change Rate:
> 1.5 K/min

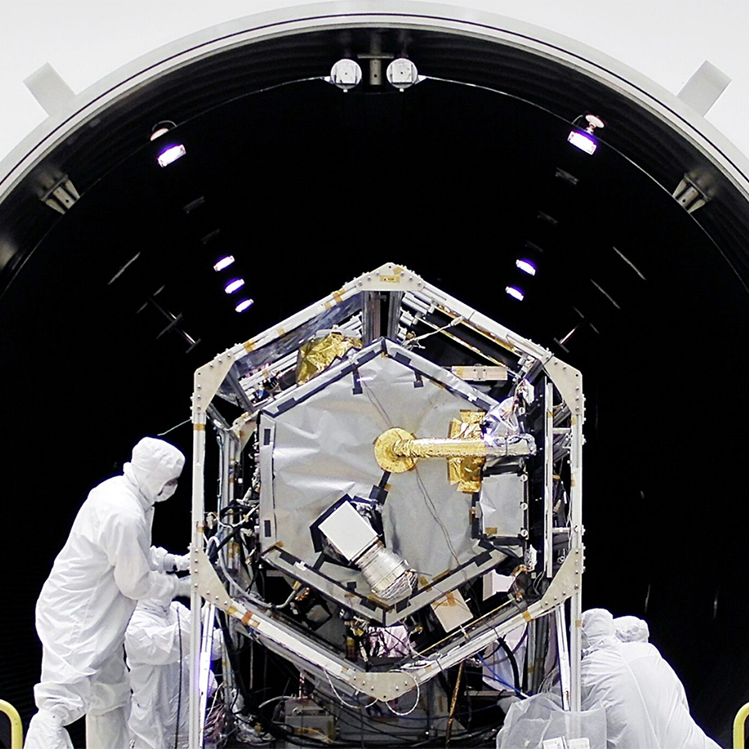

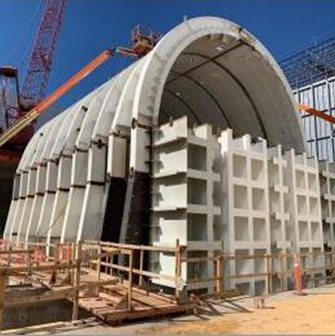

Custom designed, field constructed TVAC for the largest spacecraft.
Thermal Vacuum Chambers at these scales are highly specialized and constructed as an integral part of a test facility.
Dynavac is the leading company in the design and support of thermal vacuum test facilities at the largest scales.
We have proven partnerships with construction firms and have delivered facilities over 12m width and height.

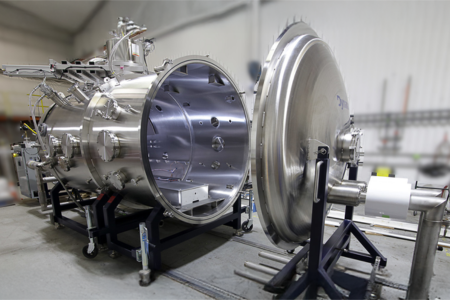

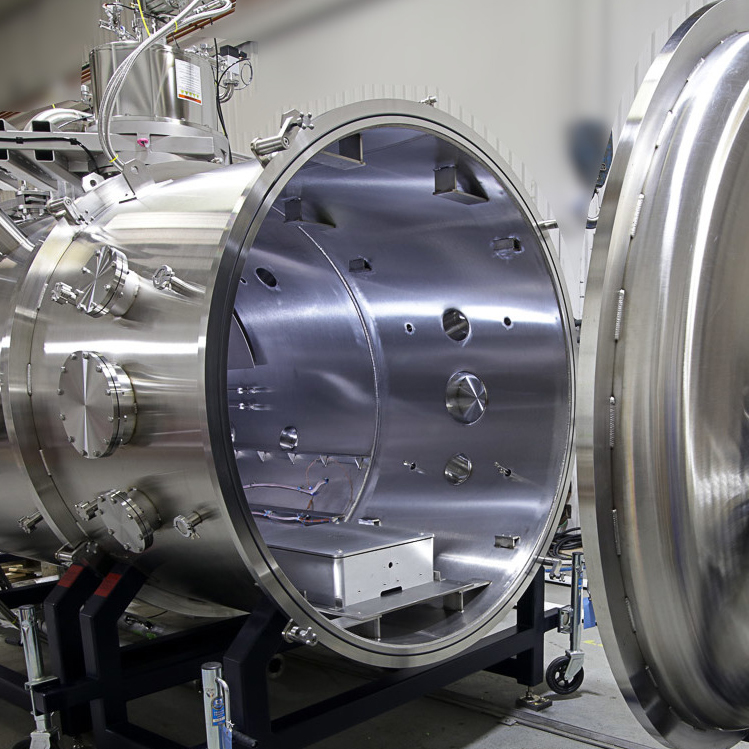

Electric Propulsion Test Chambers & Systems
Develop and test electric propulsion thrusters under space conditions. Dynavac’s expertise inspace simulationand vacuum pumping gives you turnkey test chambers to develop and evaluate spacecraft electric propulsion under tightly controlled and realistic space conditions. Maintaining proper chamber pressure is key; our electric propulsion systems reliably and accurately create the conditions to flight-test your thrusters. From NASA rockets to orbiting defense satellites and commercial communication satellites, reliable electric propulsion is essential. Partner with Dynavac for a custom-constructed space simulation solution today.
- Stainless steel vacuum chambers are available from 5ft and up
- Vacuum levels are maintained by a matched rough- and high-vacuum pumps capable of 10-7torr

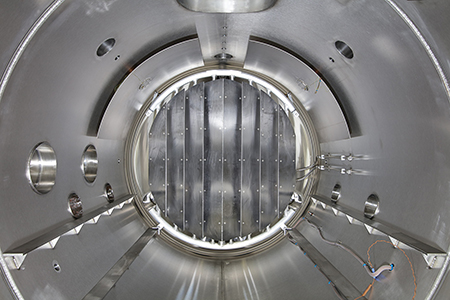

- Internal cold arrays at 20K enable pumping of condensable gasses such as Xenon, Krypton, Argon, Nitrogen, CO2, CH4, CO, Water, NH3, Hydrogen and Iodine
- Water or liquid nitrogen cooled beam dump target lined with low-sputtering materials such as graphite. Other target materials are available.
- Our electric propulsion test systems can be easily configured to serve as thermal vacuum test systems
- Variety of test stands including vibration isolation options

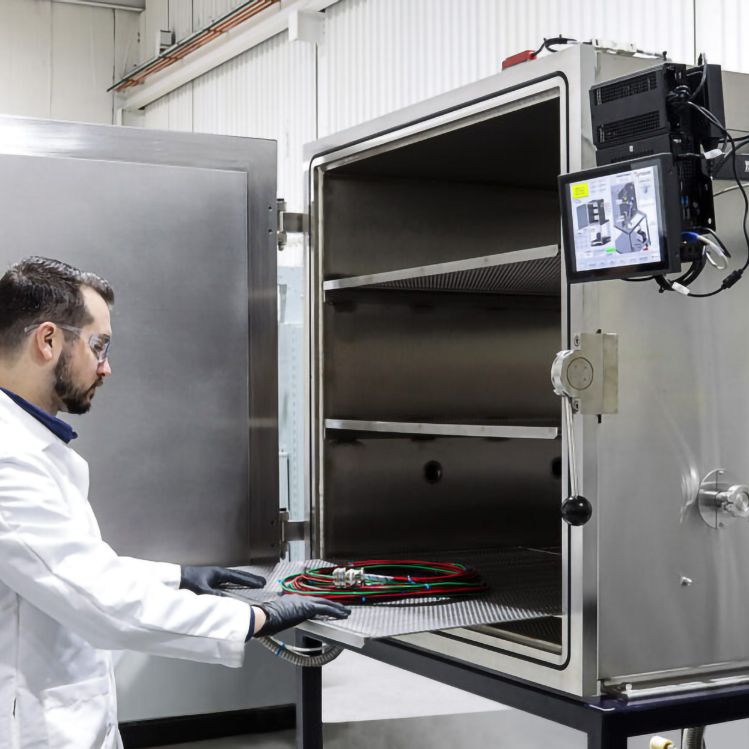

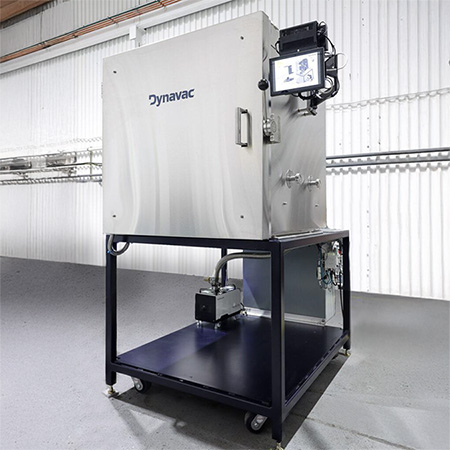

Vacuum Bakeout Chambers
Remove volatiles and contaminants in preparation for flight. Vacuum bakeout to minimize outgassing: Mission success cannot be jeopardized by molecular outgassing and contamination of sensitive hardware. Dynavac leverages its expertise in space simulation to deliver high-performance Vacuum Bakeout Systems. Our systems provide precision and reliability to support all your bakeout needs, ensuring the integrity of your mission-critical hardware.
- Chamber sizes 24 inches and up
- Temperature: Ambient to 150C+
- Vacuum levels of better than 10-6torr
- Removable work shelves
- Set point control and data logging
- Contamination monitoring and data acquisition available
Make informed decisions. Reduce risk. Achieve mission success.
Not all thermal vacuum systems deliver the same level of performance
Dynavac excels through patented technologies and proven expertise, delivering precise, stable and reliable space simulation environments for mission-critical testing.
Proven Expertise
Largest Install Base Low earth orbit to deep space to exoplanet missions, we've created those conditions across 300+ complex systems to be the authority and trusted partner to aerospace leaders worldwide.
Unmatched Thermal System Control
We deliver precise, stable space simulation environments where traditional systems fall short by integrating mechanical, LN2, and GN2 cooling into a coordinated platform across single and multi-zone control.
Intuitive & Advanced Software
Our software doesn't just run chambers — it orchestrates your entire testing environment with precision control, real-time intelligence, and enterprise-scale visibility, so you can trust every result, every time.
Global Experts Local Touch
We support you across the full lifecycle worldwide, from initial sales and system design to installation, operator training, and ongoing service.Explore how Dynavac systems compare across key performance parameters.
Explore the complete comparison across all critical performance parameters.
Download full comparison table
Are you sure you're choosing the right Thermal Vacuum Chamber for your next mission?
Your hardware's performance in space depends on this decision. This guide distills decades of Dynavac expertise into clear criteria and practical insights to help you select the chamber that truly fits your needs.
Ready to make a confident, informed choice?
Download the free guide now

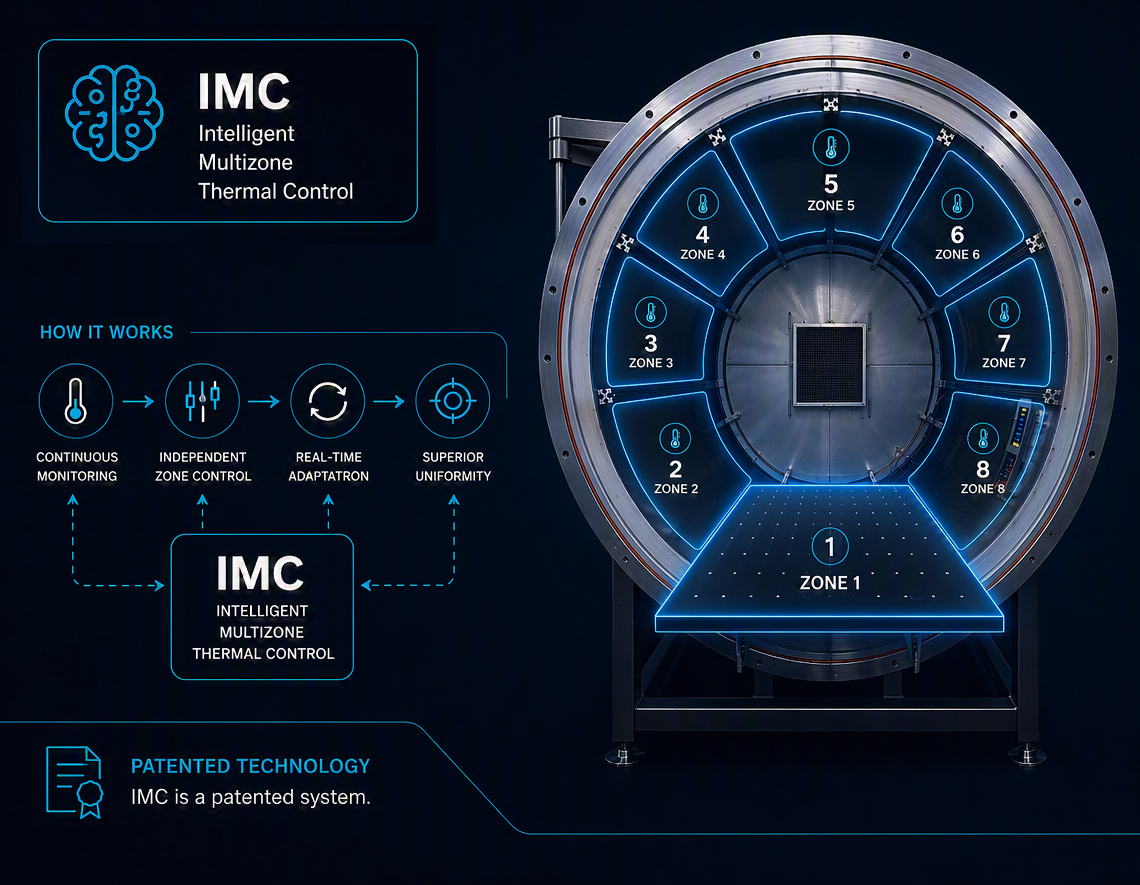

SMARTER THERMAL UNIFORMITY FOR TVAC TESTING
Every zone independently controlled. One uniform thermal environment.
KEY BENEFITS
ENHANCED UNIFORMITY
Tighter temperature control across the entire shroud.
REAL-TIME ADAPTATION
Each zone adapts instantly to disturbances and changes.
IMPROVED TEST FIDELITY
Replicates on-orbit thermal environments with higher confidence.
PROCESS STABILITY
Consistent performance across long-duration TVAC campaigns.
OPTIMIZED EFFICIENCY
Energy is used only where and when needed.
Beyond Conventional Control

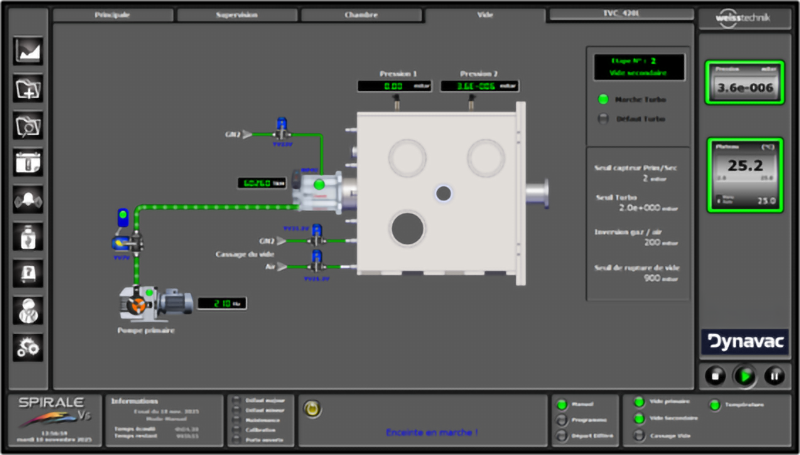

A unified real-time control environment designed to manage the full test process — from execution to analysis.
In conventional control approaches, system behaviour is managed through sequential or layered control structures. Dynavac systems implement a unified real-time control environment where all necessary automation to reproduce environmental conditions are managed within a single software platform.
By continuously regulating system parameters and coordinating all subsystems, the control system enables smoother behaviour, improved stability and more precise response to dynamic conditions.This integrated approach extends across the entire test lifecycle — from cycle programming to execution, monitoring and post-processing.
- Unified control of environmental conditions and automatisms
- Real-time monitoring and regulation of all system parameters
- Integrated test execution, recording and reporting environment
- Direct interaction with the test specimen and system components
Operational excellence in thermal vacuum testing
Whether you are already operating a Thermal Vacuum Chamber or evaluating a new one, understanding how to manage contamination, procedures, and lab operations is key to ensuring reliable results from day one.
These guidelines reflect the operational approach behind Dynavac systems — where performance is not only engineered, but consistently maintained throughout every test cycle.
FOD Prevention Checklist
Keep contamination under control before it impacts your results
Structured guidelines to manage cleanliness, material handling, and inspection procedures across all critical phases — from chamber preparation to post-work audits.
Checklist
TVAC Performance Checklist
Improve vacuum quality and operational efficiency
A practical reference covering moisture control, sealing integrity, pumping systems, and daily operational discipline to ensure consistent test conditions.

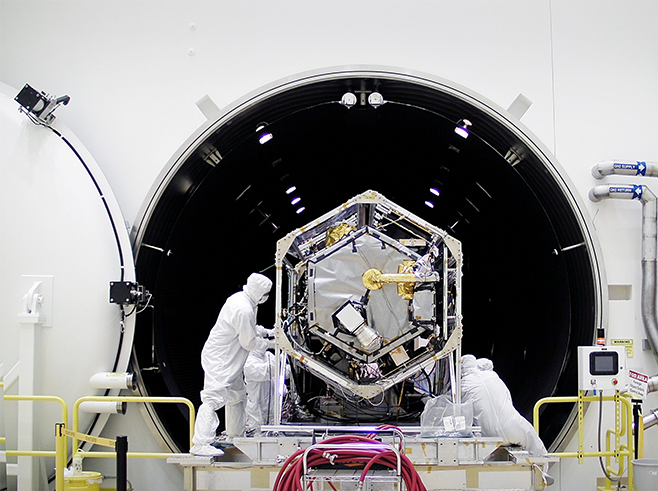

ChecklistNeed a fully customized chamber built around your mission?
Our engineers work directly with your team to design, manufacture, and install a TVAC system precisely matched to your spacecraft, test environment, and schedule requirements.
